UNI-T UDP4303S DC Power Supply
1 3

  • Type: Linear
  • Channels: 4
  • Power: 297W
  • Voltage Range: CH1/CH2: 0–32V, CH3: 0–15V, CH4: 0–6V
  • Current Range: CH1/CH2: 0–3A, CH3: 0–3A, CH4: 0–10A
  • Resolution: 1mV, 1μA
  • Accuracy: <0.03%+8mV, <0.15%+5mA
  • Interfaces: RS-232, USB Host, USB Device, LAN, Digital IO, Sense

In stock: 9
€1.096,05 EUR €1.096,05 EUR €1.290,00 EUR
Sale 15.03% €193,95 EUR (15.03%)
Shipping calculated at checkout.
Scroll to section

Characteristics

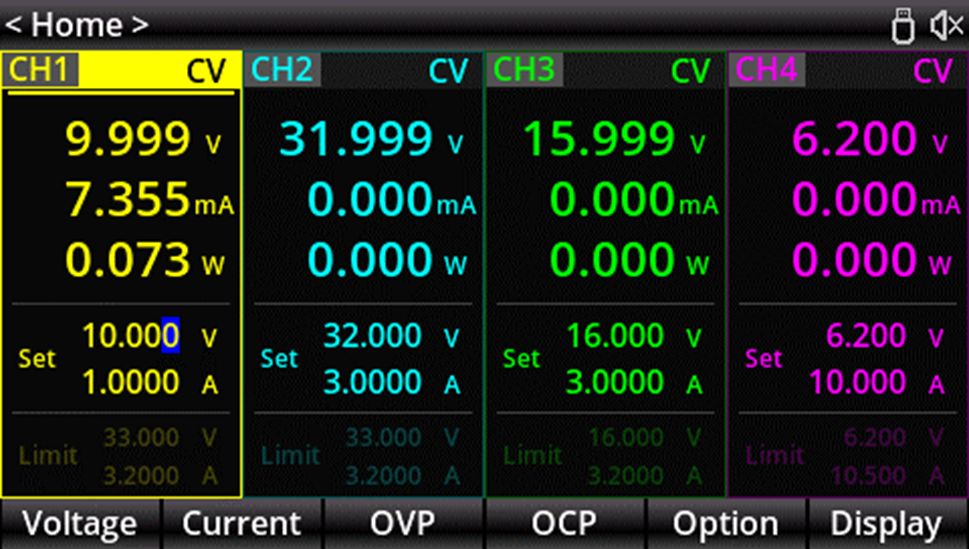

Higher resolution

Current resolution up to 1µA, small current mode supported on all four channels

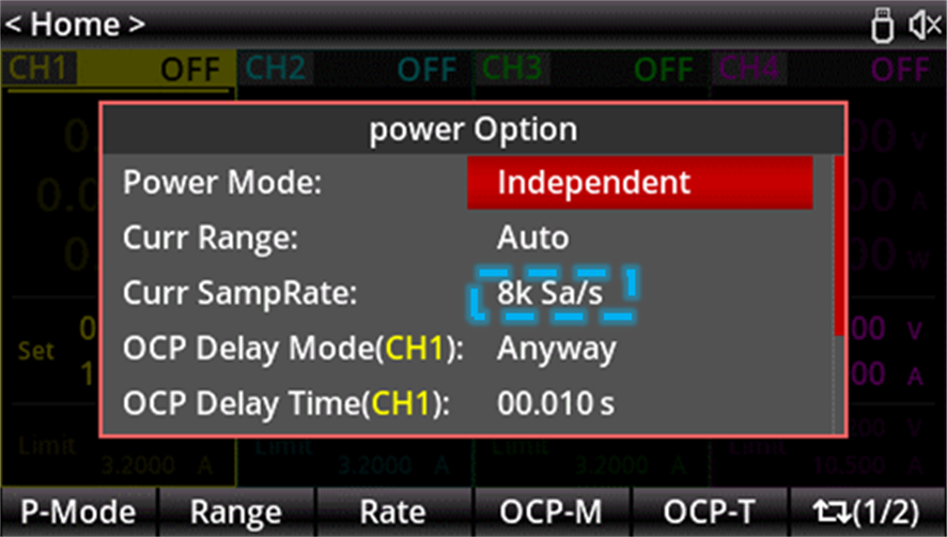

Waveform analysis

  • 8kSa/s current sampling rate
  • Four-channel current high-speed sampling. Accurately captures and displays transient changes.

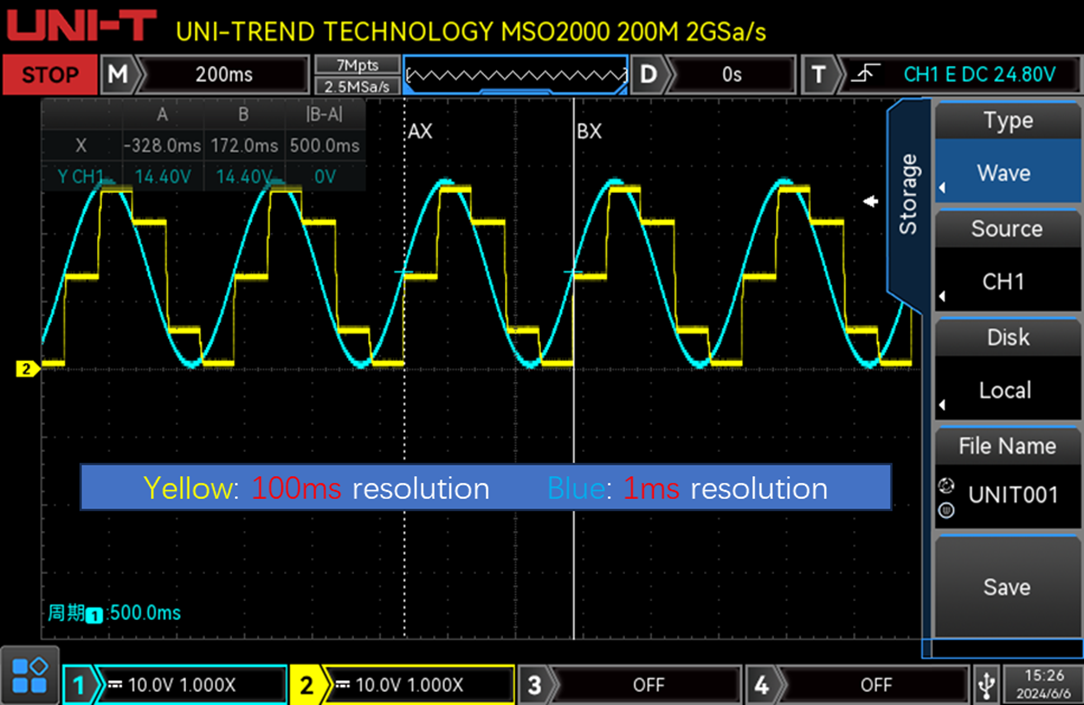

1ms programming time resolution

  • Programming time resolution up to 1ms, more refined output for diverse arbitrary waveforms
  • 100 times the resolution of previous generation power supplies

Multiple display styles

4.3 inch LCD clear display, 6 interface display styles to help you better view the measurement results

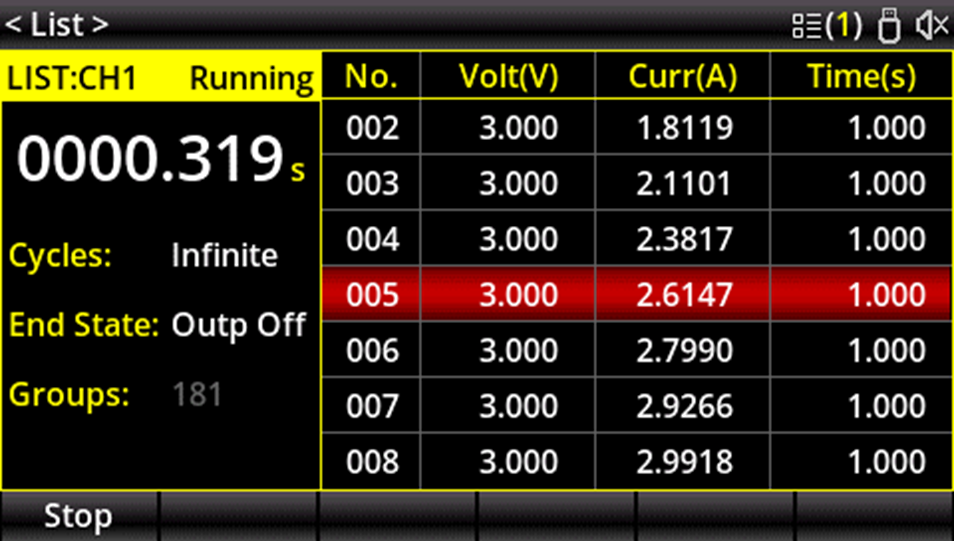

Various useful functions

  • List, Delayer, Monitor, Trigger, Recorder
  • Help you automate tests, monitor and protect intelligently, and record the data you care about.

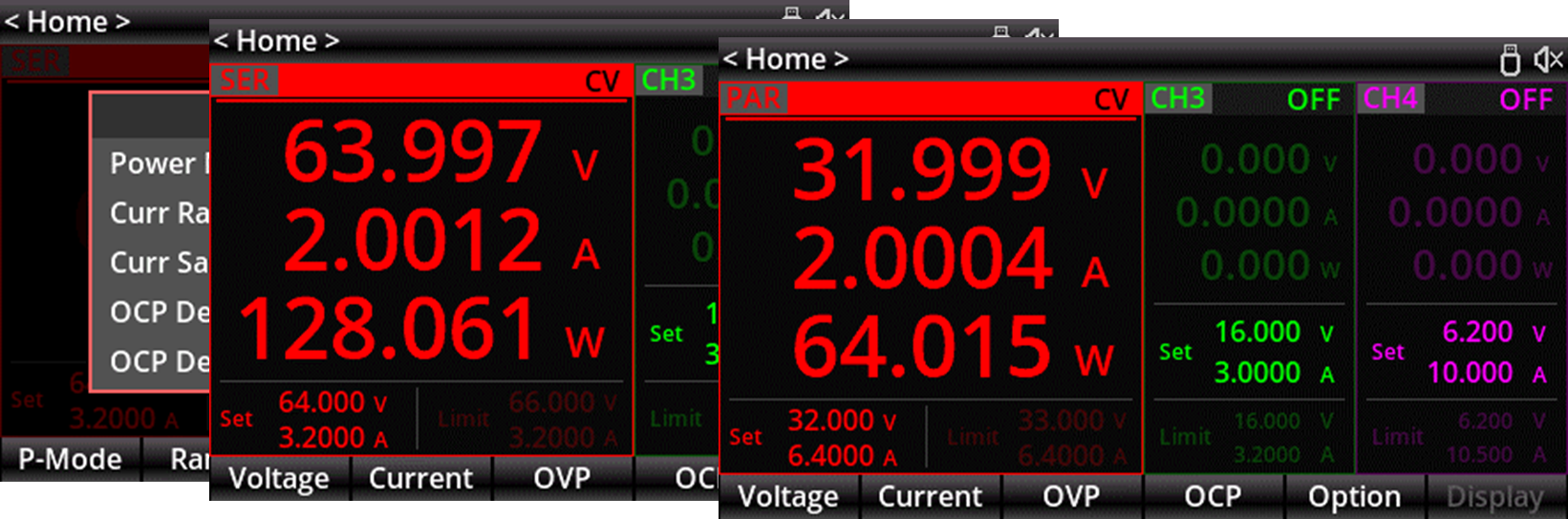

Series and parallel

Independent, series and Parallel operation can be easily realized through the menu. Strong performance even when connected in series and parallel

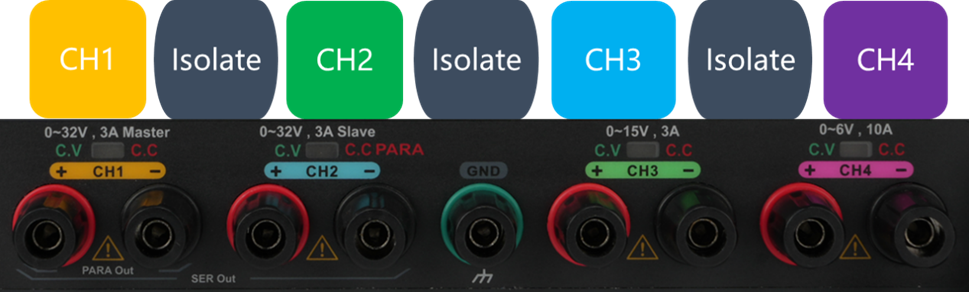

Full Channel Isolation

  • Four-channel full isolation
  • Isolation without crosstalk, comfort and safety

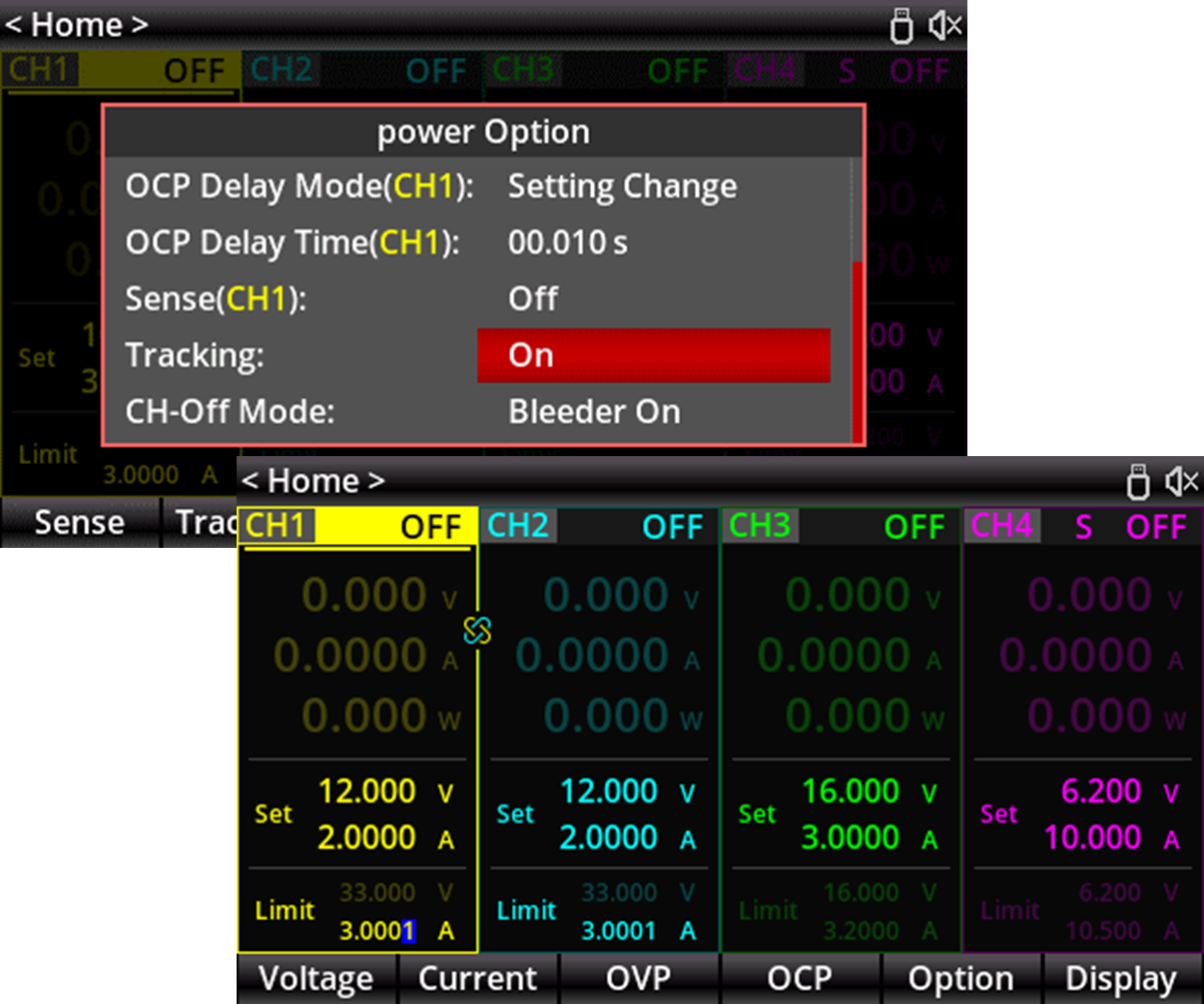

CH1 & CH2 channel tracking

Turn on the tracking function. Arbitrarily change the settings of one channel and the settings of the other channel will be changed accordingly

Product Details


  • Type: Linear
  • Channels: 4 (CH1/CH2: 0–32V/3A, CH3: 0–15V/3A, CH4: 0–6V/10A)
  • Total Power: 297W
  • Voltage Range: CH1/CH2: 0–32V, CH3: 0–15V, CH4: 0–6V
  • Current Range: CH1/CH2: 0–3A, CH3: 0–3A, CH4: 0–10A
  • Resolution: 1mV / 1μA
  • Accuracy: <0.03%+8mV (Voltage), <0.15%+5mA (Current)
  • Interfaces: RS-232, USB Host, USB Device, LAN, Digital I/O, Sense
  • Display: 4.3-inch TFT-LCD
  • Isolation: Electrically isolated independent outputs for all 4 channels
  • Series/Parallel: Internal series and parallel supported for CH1 and CH2
  • Measurement: High-resolution 1μA current measurement and automatic range switching
  • Accuracy: High programming and readback accuracy
  • Response Time: Fast transient response (<50 μs)
  • Ripple & Noise: Low output ripple <350 μVrms / 2 mVpp

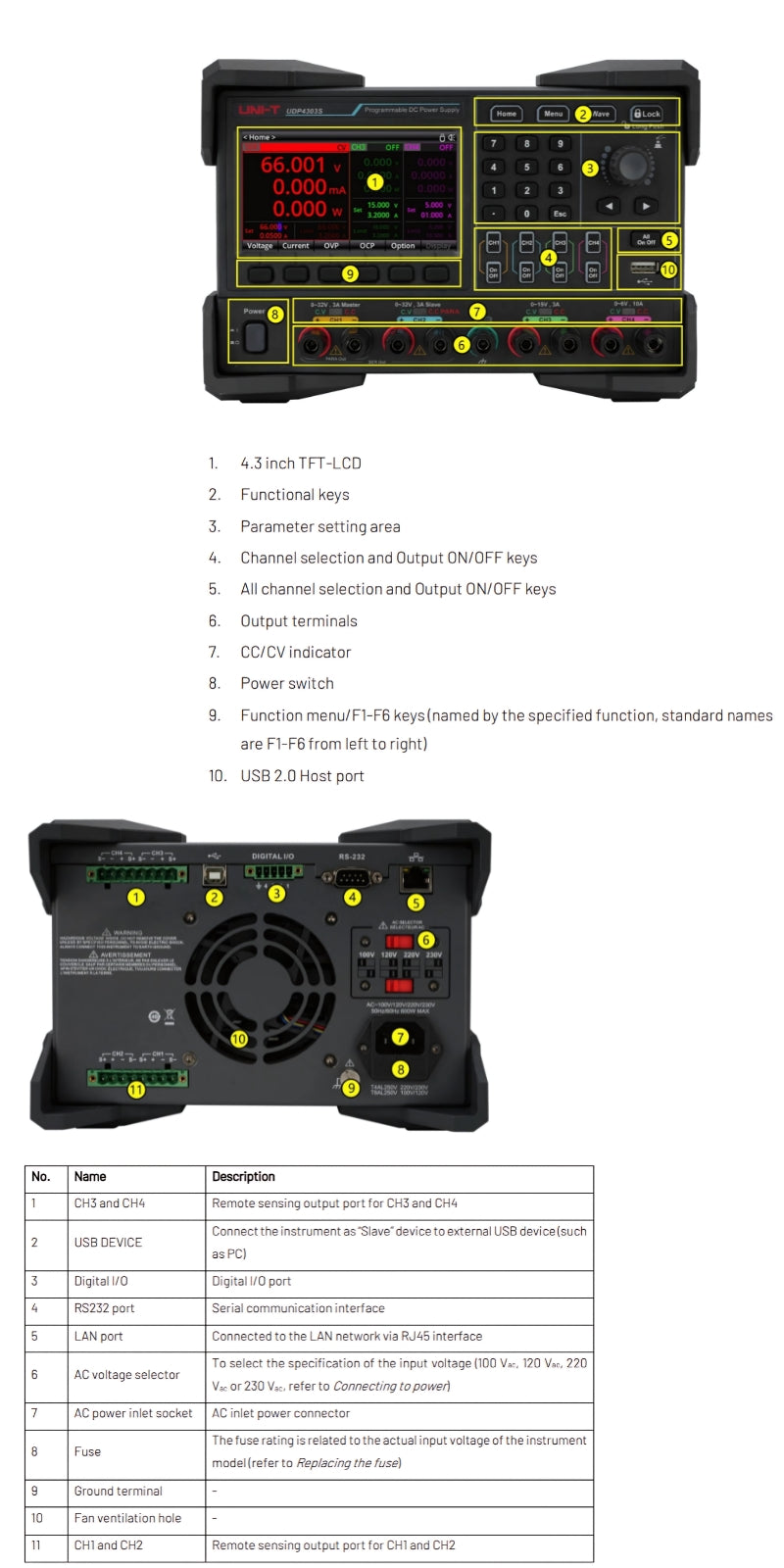

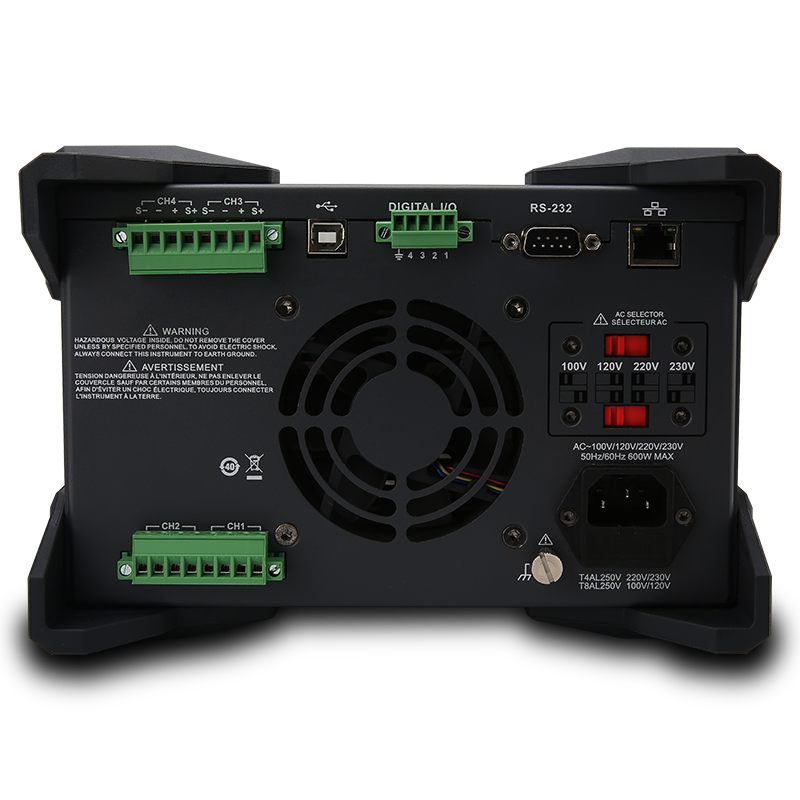

  • Output Terminals: Available on both front and rear panels
  • Remote Sensing: Supports 2-wire and 4-wire remote sensing
  • Waveforms: 512 groups of serial outputs with minimum 1 ms dwell time and built-in waveforms
  • Pulse Output: Supports 1 ms minimum pulse current waveform
  • Timing & Analysis: Timing output, energy consumption analysis, data recording
  • Command Processing: <10 ms with SCPI command support
  • Protection: OVP/OCP/OTP/Sense; configurable OCP delay (0–1000 ms)
  • Sampling: High-speed 8 kSa/s current sampling in full channel mode
  • Form Factor: 3U height, 1/2-rack width
  • Control: Supports upper computer control

  • Power Cord
  • USB Data Cable

  • Dimension (W×H×D): 225mm × 159.60mm × 445mm
  • weight: <12Kg

Product comparison

UNI-T UDP4303S DC Power Supply
UNI-T UDP4303S DC Power Supply
UNI-T UDP4303S DC Power Supply
Current product Current
UNI-T

UNI-T UDP4303S DC Power Supply

€1.096,05 EUR €1.096,05 EUR €1.290,00 EUR
Options
In stock: 9
Descriptions
  • Type: Linear
  • Channels: 4
  • Power: 297W
  • Voltage Range: CH1/CH2: 0–32V, CH3: 0–15V, CH4: 0–6V
  • Current Range: CH1/CH2: 0–3A, CH3: 0–3A, CH4: 0–10A
  • Resolution: 1mV, 1μA
  • Accuracy: <0.03%+8mV, <0.15%+5mA
  • Interfaces: RS-232, USB Host, USB Device, LAN, Digital IO, Sense
type
  • type: Linear
channels
  • channels: 4
total power
  • total power: 297W
output voltage
  • output voltage: CH1/CH2:0 - 32 V CH3:0 - 15 V CH4:0 - 6 V
output current
  • output current: CH1/CH2:0 - 3A CH3:0 - 3A CH4:0 - 10A
resolution
  • resolution: 1mV,1μA
setting accuracy
  • setting accuracy: <0.3%+8mV <0.15%+5mA
connectivity
  • connectivity: RS-232,USB Host, USB Device, LAN, Digital IO, Sense

Downloads

UNI-T UDP4303S DC Power Supply User Manual

UNI-T UDP4303S DC Power Supply User Manual(Deutsch)

UNI-T UDP4303S DC Power Supply Datasheet

UNI-T UDP4303S DC Power Supply Quick Start Guide
