The list function can preset the power output curve to facilitate the automatic test Delayer function, set the delay output of the power supply. It can help you with on-off test or related test

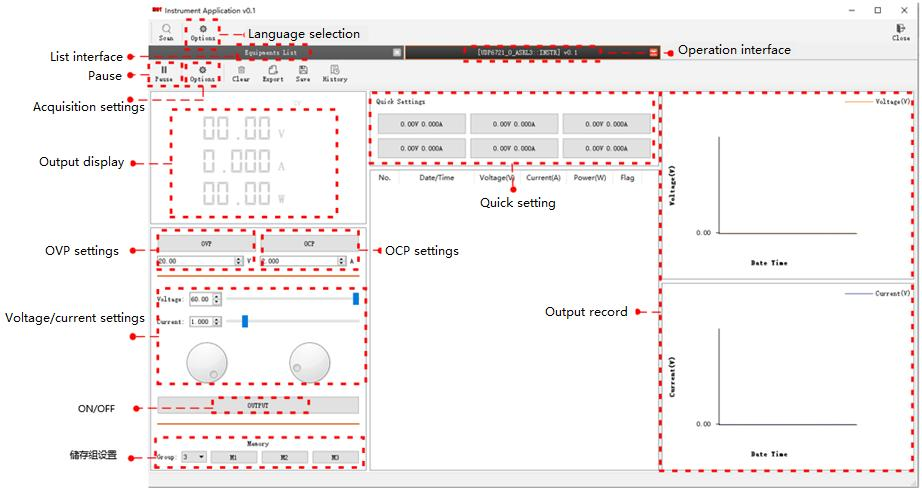

It supports remote control and can be set and viewed on the PC.

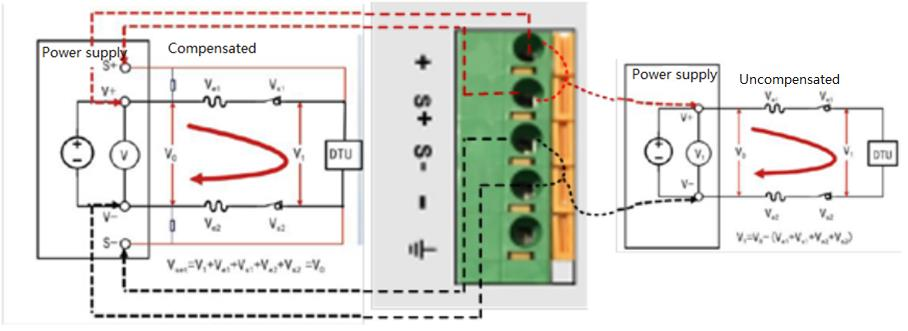

Provide remote compensation, and the power readback is displayed as the voltage value at the load end.

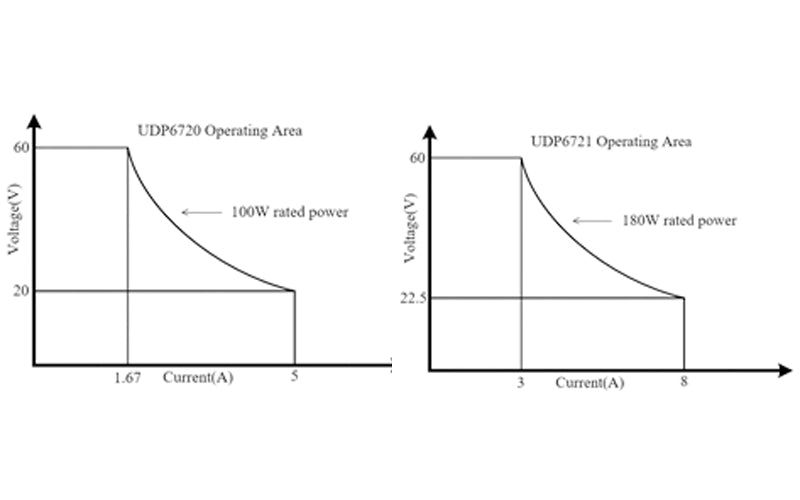

series is a wide range and high efficiency DC power supply with an output power ratio of 3.0. The output range is a wide range surrounded by the maximum voltage, maximum current and maximum power. One power supply can replace multiple small power supplies, saving the purchase cost.

UDP6700 series adopts 2.8inch full-color LCD display to show users more display contents without repeated reading and recording. It also provides interaction of multiple parameters, which can be set according to your needs.
