UNI-T UTG9354T Waveform Generator
1 3

Buttons

  • Bandwidth: 350 MHz
  • Sampling Rate: 2.5 GSa/s
  • Vertical Resolution: 16-bit/14-bit
  • Channels: 4
  • Memory Depth: 64 Mpts
  • Display: 10.1 inch TFT LCD (touch screen)

In stock: 4
€3.250,00 EUR €3.250,00 EUR
Shipping calculated at checkout.
Scroll to section

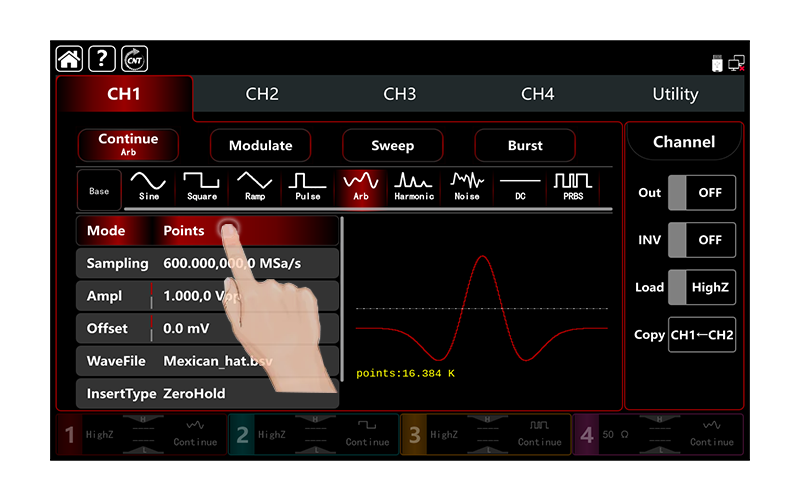

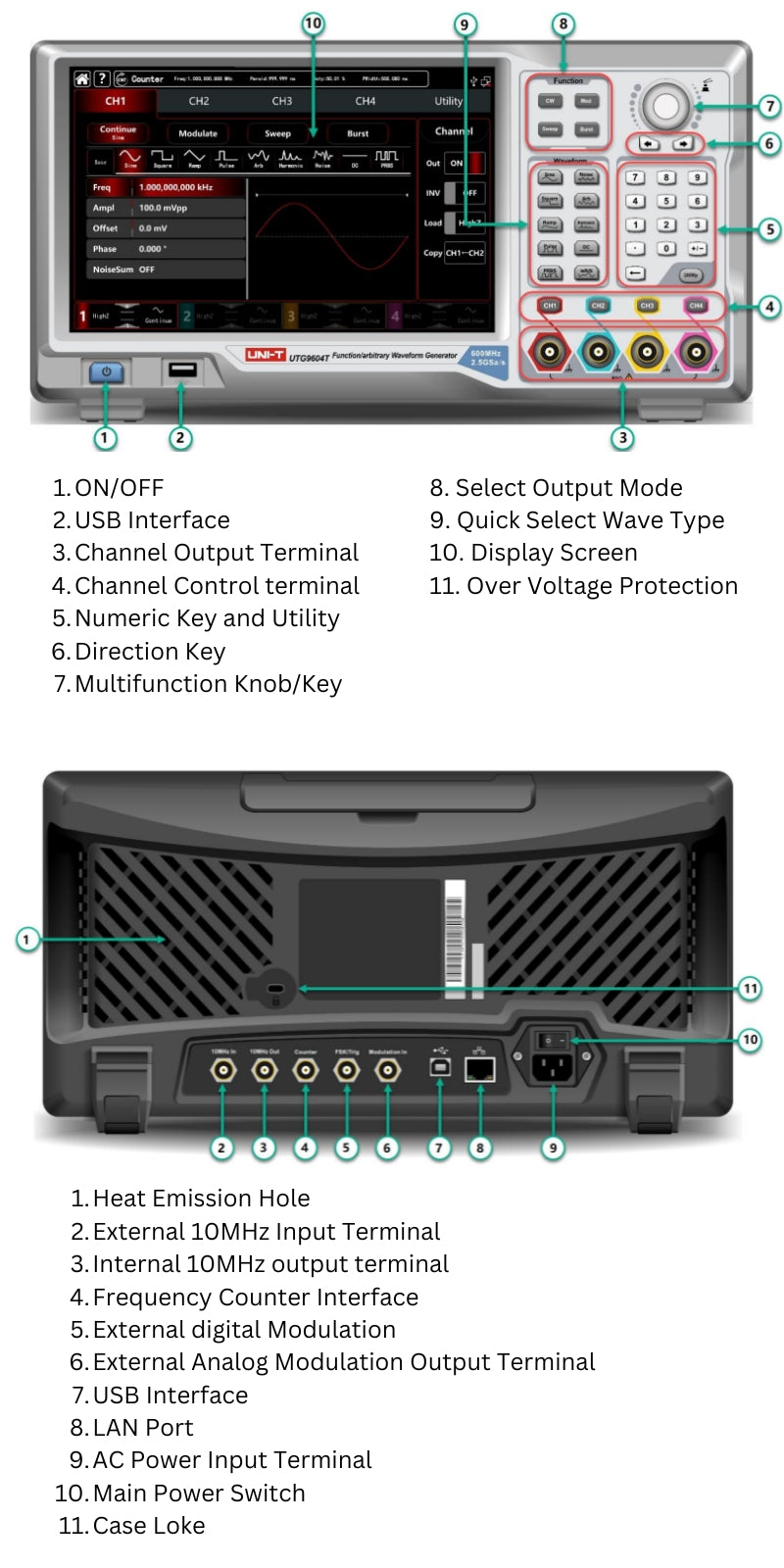

Characteristics


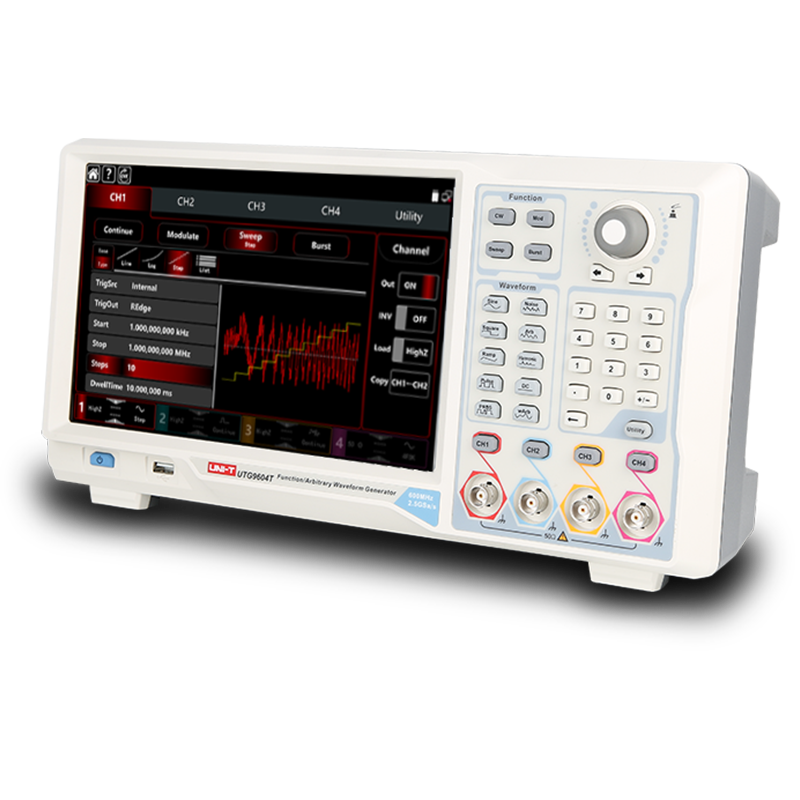

10.1 inch touchscreen

  • The UTG9000T series features a large 10.1-inch capacitive touchscreen with a resolution of 1280*800, as well as introduces a new UI design that enhances the user experience, which provides a clear and vibrant interface for easy navigation and operation.
  • The combination of the large touchscreen display and the new UI design makes the UTG9000T series user-friendly and ensures a smooth and enjoyable user experience.

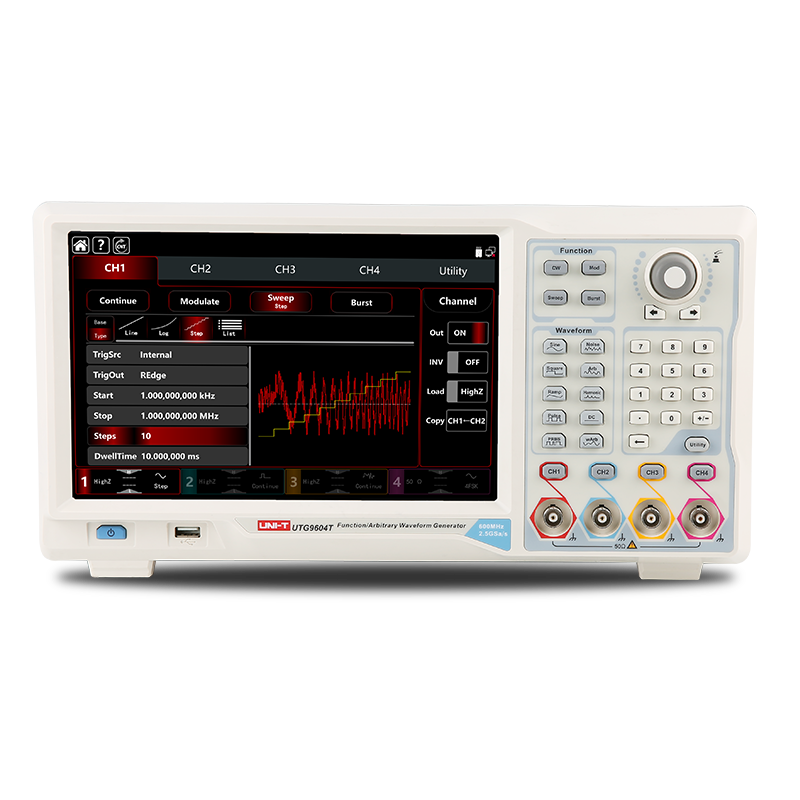

4 channel output, 4 sweep modes

  • The UTG9000T series is equipped with a standard 4-channel output, allowing simultaneously output four different signals.
  • Besides Linear, Logarithmic in traditional sweep modes, the UTG9000T series add 2 new modes——Step and List. The Step mode enables precise and incremental adjustments, while the List mode allows users to define specific values or points for the sweep, offering precise control over the generated signals.These sweep modes enhance the functionality of the UTG9000T series and enable a wide range of waveform generation possibilities.

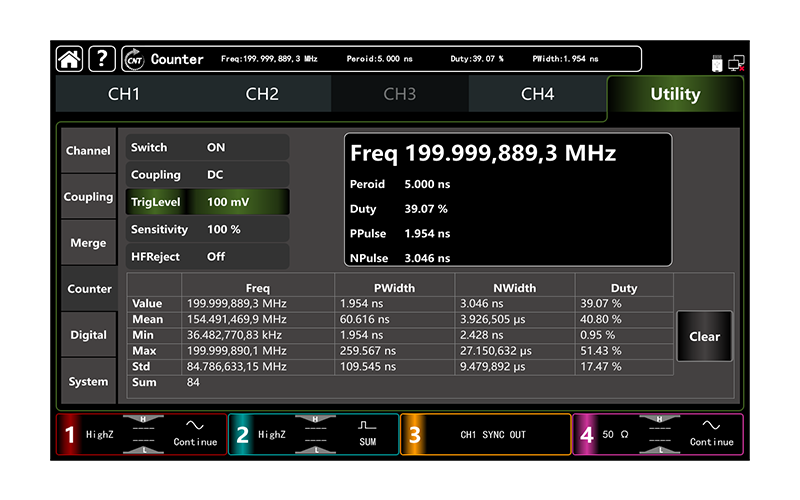

8-digit frequecy counter

  • The UTG9000T series features an 8-digit high-precision frequency counter capable of measuring frequencies ranging from 100mHz to 800MHz.
  • This frequency counter offers precise measurements and can accurately determine various parameters of external input signals, including frequency, period, duty cycle, positive pulse width, and negative pulse width.
  • With its wide frequency range and high precision, the UTG9000T series provides reliable frequency measurement capabilities for a variety of applications.

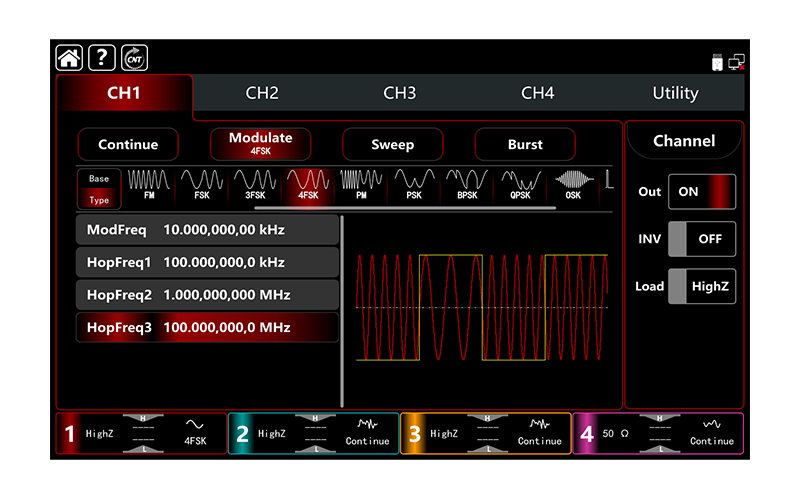

Multiple modulation modes and multiple arbitrary waveforms

  • The UTG9000T series offers a comprehensive selection of modulation modes, catering to various teaching or communication system testing requirements. These modes include AM,FM,PM,DSB-AM,QAM,ASK,FSK,3FSK,4FSK,PSK,BPSK,QPSK,OSK,PWM and SUM.
  • Moreover, the UTG9000T series is equipped with over 200 built-in arbitrary waveforms that are commonly used in various fields, such as engineering, bioelectricity, medicine, standards, and mathematics. These waveforms include trigonometric functions, inverse triangles, complex waveforms, and more, conveniently categorized for easy selection. This extensive collection of waveforms enhances the flexibility of the UTG9000T series for waveform generation in different applications.

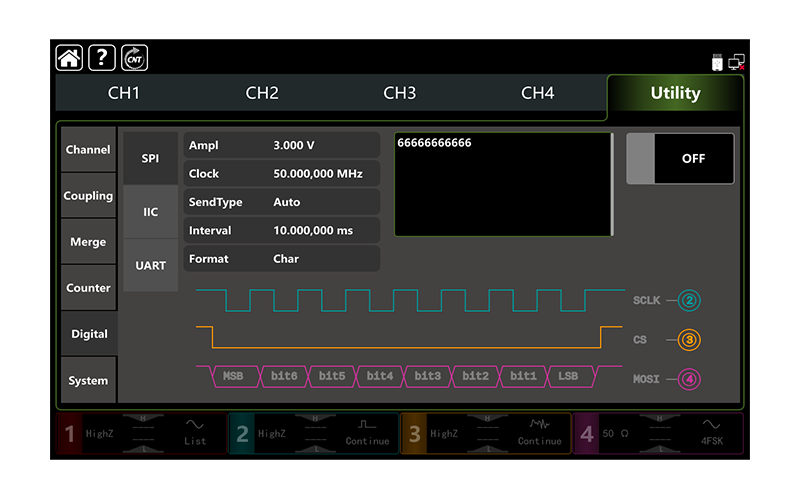

Protocol output

  • The UTG9000T series supports three standard digital protocol outputs: SPI , I2C, and UART. These protocols provide versatile testing options for interfacing with different devices and systems, making the UTG9000T compatible with a wide range of applications.

PRBS and SNR function

  • The UTG9000T series offers advanced features such as a PRBS (Pseudo-Random Binary Sequence) generator for testing the bit error rate of high-speed serial channel transmission. By sending PRBS codes, users can assess the quality and integrity of the transmitted data.
  • In addition, the UTG9000T series includes a convenient one-key superimpose SNR(signal-to-noise ratio) function. This feature enables users to superimpose Gaussian noise on the main output signal, allowing for testing and evaluation of the equipment's anti-noise performance.

Product Details


  • Model: UTG9354T
  • Channels: 4 (independent outputs)
  • Bandwidth: Up to 350 MHz (Sine Wave)
  • Sampling Rate: 2.5 GSa/s
  • Vertical Resolution: 16-bit / 14-bit
  • Memory Depth: 64 Mpts
  • Display: 10.1-inch capacitive TFT LCD touchscreen (1280×800)
  • Waveforms: Sine, Square, Ramp, Pulse, Harmonic, Noise, PRBS, DC, Arbitrary
  • Sine Output:350 MHz, 1 μHz resolution
  • Square Output:120 MHz, ≤1.5 ns edge, adjustable duty
  • Pulse Output:120 MHz, adjustable edge and duty
  • Harmonics: 2 to 16 harmonics with independent phase and amplitude control
  • Max Output Amplitude: 20 Vpp
  • Arbitrary Waveform: 8 pts to 64 Mpts, 200+ stored waveforms, .bsv/.csv support
  • Modulations: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
  • Sweep Modes: Linear, Log, List, and Step sweeps
  • Burst Mode: Pulse string and sweep bursts
  • Digital Protocol Output: SPI, I2C, UART
  • SNR Output: One-click generation
  • Modulation Control: Internal/external/trig per channel, dual-channel modulation
  • Frequency Counter: 800 MHz, AC/DC coupling
  • Storage: 16 GB internal for waveforms and settings
  • Interfaces: USB Host, USB Device, LAN, 10 MHz clock I/O
  • User Interface: Multi-function knob and numeric keypad

  • Power Cord
  • USB Data Cable
  • BNC - BNC(UT-L45) x 4

  • Dimension (W×H×D): 370 mm X 115 mm X 185 mm
  • weight: <5 Kg

Product comparison

UNI-T UTG9354T Waveform Generator
UNI-T UTG9354T Waveform Generator
UNI-T UTG9354T Waveform Generator
Current product Current
UNI-T

UNI-T UTG9354T Waveform Generator

€3.250,00 EUR €3.250,00 EUR
New
Options
In stock: 4
Descriptions
  • Bandwidth: 350 MHz
  • Sampling Rate: 2.5 GSa/s
  • Vertical Resolution: 16-bit/14-bit
  • Channels: 4
  • Memory Depth: 64 Mpts
  • Display: 10.1 inch TFT LCD (touch screen)
max output frequency
  • max output frequency : 350MHz
sample rate
  • sample rate: 2.5GSa/s
vertical resolution
  • vertical resolution: 16-bit/14-bit
channels
  • channels: 4
arbitrary wave length
  • arbitrary wave length: 64Mpts
display
  • display: 10.1 inch TFT LCD (touch screen)

Downloads

UNI-T UTG9354T Waveform Generator User Manual

UNI-T UTG9354T Waveform Generator Datasheet

UNI-T UTG9354T Waveform Generator User Manual(Deutsch)

UNI-T UTG9354T Waveform Generator Quick Start Guide
