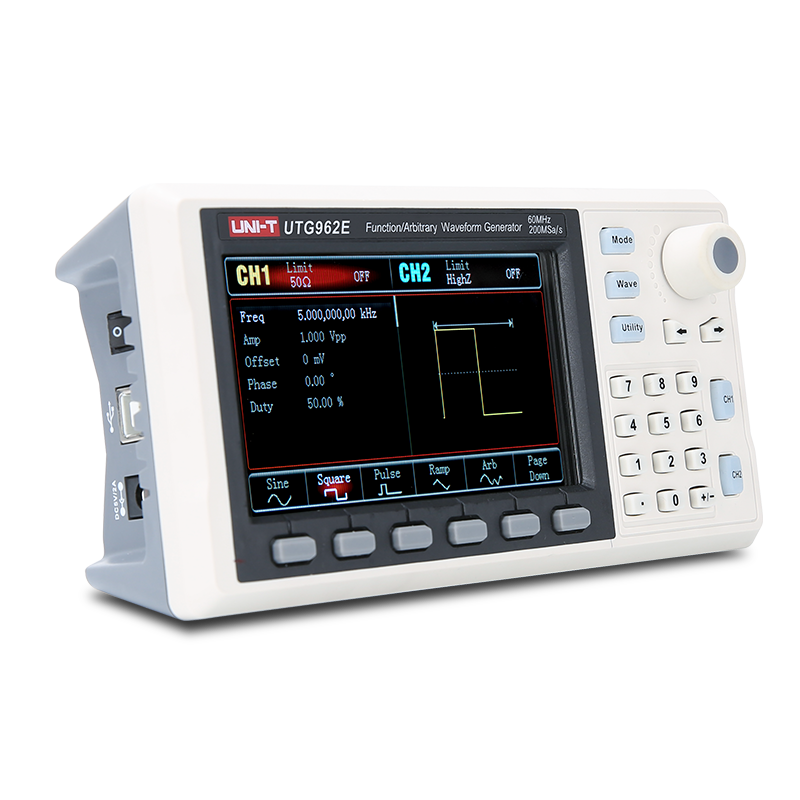

UNI-T UTG962E Waveform Generator
1 3

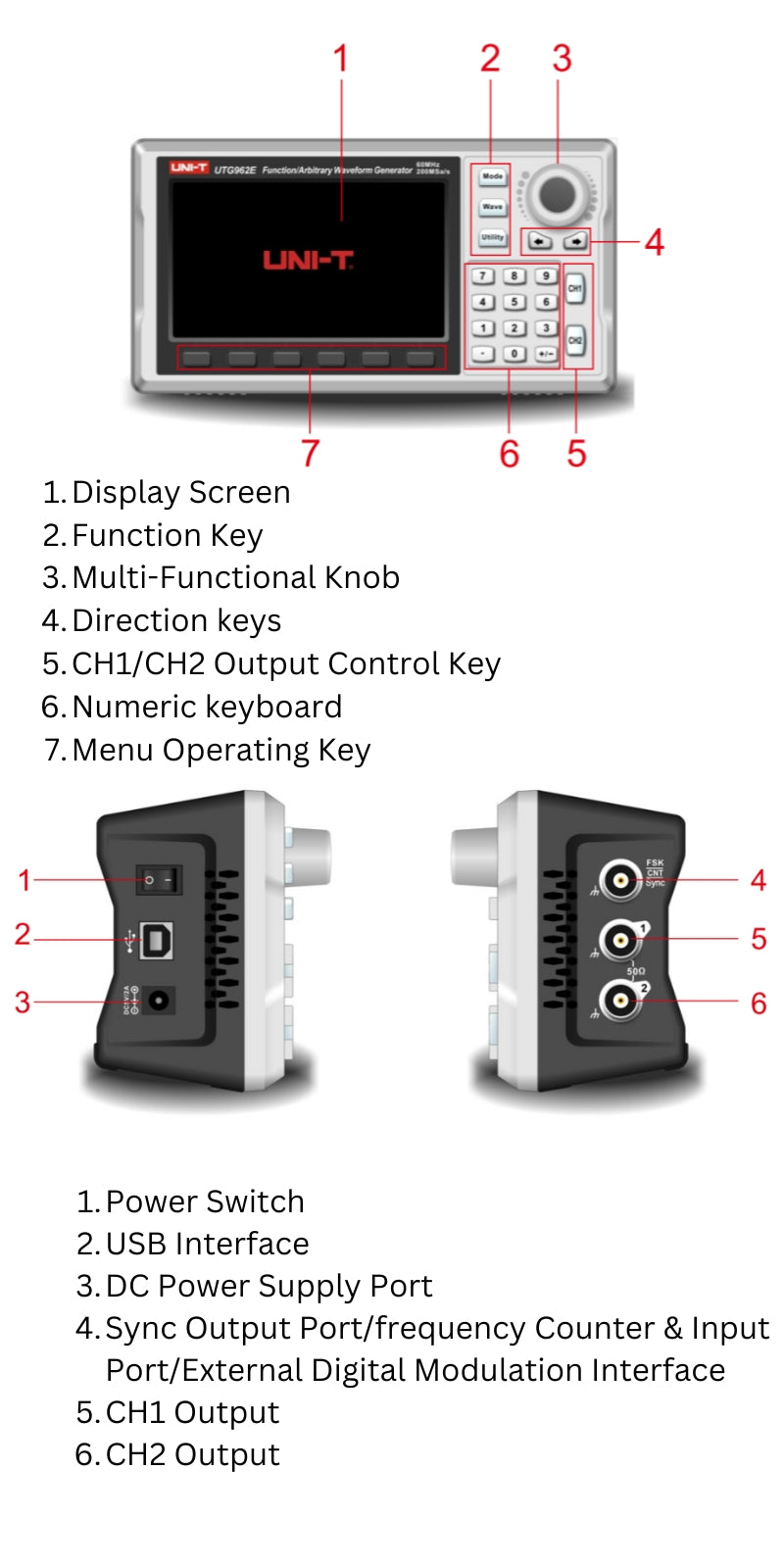

Buttons

  • Bandwidth: 60 MHz
  • Sampling Rate: 200 MSa/s
  • Vertical Resolution: 14-bit
  • Channels: 2
  • Memory Depth: 4 kpts
  • Display: 4.3 inch TFT LCD

In stock: 15
€148,00 EUR €148,00 EUR
Shipping calculated at checkout.
Scroll to section

Characteristics

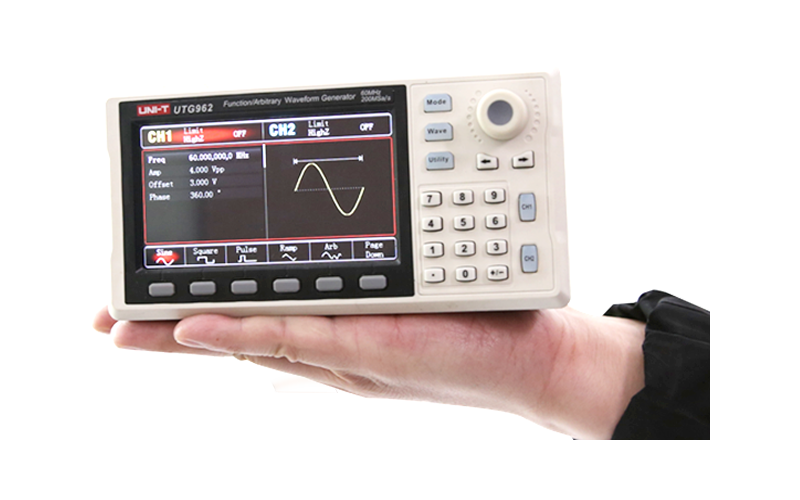

Mini palm-sized signal generator

  • Palm-sized signal generator
  • your personal signal output source, bring you a different sense of experience

4 channel output, 4 sweep modes

  • Maximum output frequency 60MHz, dual channel,
  • multiple waveform signals:

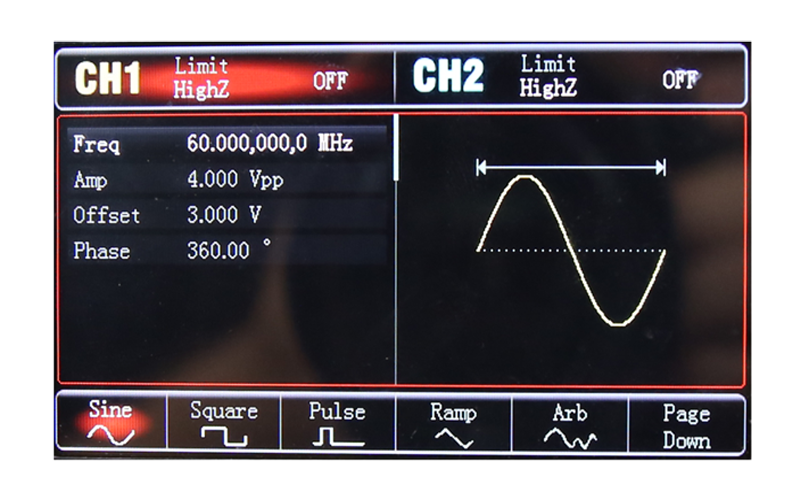

    sine wave, square, ramp, pulse, noise, DC, arbitrary waveform

8-digit frequecy counter

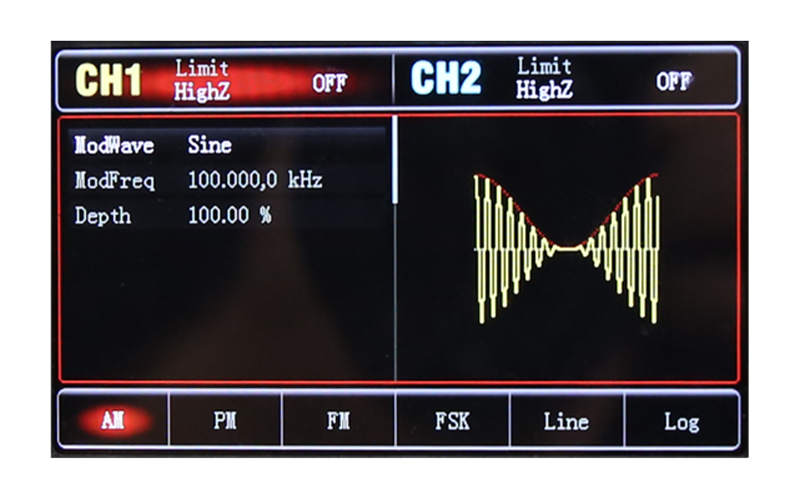

  • Easy-to-use modulation types: AM, FM, PM, FSK

Built-in 24 arbitrary waveforms

  • 24 kinds of non-volatile digital arbitrary waveform storage

Sweep function

  • Scan type: linear and logarithmic, test scan from low to high, and scan output from high to low

Product Details


  • Model: UTG962E
  • Channels: 2
  • Max Frequency: 60 MHz (Sine wave)
  • Sampling Rate: 200 MSa/s
  • Vertical Resolution: 14-bit
  • Waveforms: Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary
  • Modulation Types: AM, FM, PM, FSK, Line, Log
  • Working Modes: Output gating, continuous, modulation, frequency sweep
  • Sine Wave Output: 1 μHz – 60 MHz, 1 μHz resolution
  • Square Wave Output: 1 μHz – 20 MHz, ≤16 ns rise/fall time, 0.01%–99.99% duty ratio
  • Ramp Wave: 1 μHz – 400 kHz, 3%±2mV nonlinearity, 0.0%–100.0% symmetry
  • Pulse Wave: 1 μHz – 20 MHz, 80 ns minimum width, 15 ns–8 s variable edge
  • Noise: Bandwidth: 60 MHz (–3 dB typical), DC offset ±5V
  • Arbitrary Wave: 1 μHz – 10 MHz, 4 kpts length, 14-bit resolution, 200 MSa/s
  • Amplitude Range: ≤10 MHz: 1 mVpp – 10 Vpp (50Ω), 60 MHz: 1 mVpp – 5 Vpp (50Ω)
  • Amplitude Flatness: 10 MHz: ±0.1 dB, 60 MHz: ±0.3 dB
  • Modulation Support:
    • AM: 2 mHz–200 kHz, 0%–100% depth
    • FM/PM: 2 mHz–200 kHz, ±15 MHz deviation
    • FSK: Internal/external source, square wave modulation
  • Frequency Sweep: Linear/Log, 1 ms – 500 s, 0.1% resolution
  • Sync Signal: TTL compatible, output frequency 1 μHz – 2 MHz
  • Trigger Input: TTL compatible, 10 kΩ impedance
  • Frequency Counter: 100 mHz – 100 MHz range, ±1 ppm accuracy, 1 Hz resolution
  • Nonvolatile Storage: 24 waveforms
  • Output Protection: Max 42 Vpk to ground
  • Display: 3.5-inch TFT LCD (480 × 272 resolution)
  • Power Supply: 100–240 V AC, <10 W consumption
  • Temperature Range: Operating: 10°C – 40°C, Non-operating: –20°C – 60°C

  • Power Cord
  • USB Data Cable
  • BNC Cable(UT-L45) x 1
  • BNC Aligator Clip Cable(UT-L02) x 1

  • Dimension (W×H×D): 172 mm X 90 mm X 68 mm
  • weight: <1 Kg
