DC Power Supplies

A cost-effective program control DC supply with outstanding performance.

3CH, CH1/CH2: 0~30V/0~3A, CH3: 1.8V/2.5V/3.3V/5.0V/3.2A, Resolution: 10mV/1mA, Watts: 195W, Accuracy: <0.1%+30mV/<0.5%+2mA, Digital I/O

A cost-effective program control DC supply with outstanding performance, reliable output, and clear interface.

3CH, CH1/CH2: 0~30V/0~3A, CH3: 1.8V/2.5V/3.3V/5.0V/3.2A, Resolution: 10mV/1mA, Watts: 195W, Accuracy: <0.1%+30mV/<0.5%+2mA, USB/RS232, Digital I/O

The Uni-Trend UDP3305c programmable linear DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.

3CH, CH1/CH2: 0~30V/0~5A, CH3: 5V/3.2A, Resolution: 10mV/1mA, Watts: 315W, Accuracy: <0.1%+30mV/<0.5%+2mA, USB/RS232, Digital I/O

The Uni-Trend UDP3305S High-Performance programmable linear DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.

4CH, CH1/CH2: 0~30V/0~5A, CH3: 0~6V/0~3A, CH4: 5V/2A, Resolution: 1mV/1mA, Watts: 328W, Accuracy: <0.03%+10mV/<0.2%+5mA, USB/RS232/LAN, Digital I/O

The Uni-Trend UDP3305s-e High-Performance programmable linear DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.

4CH, CH1/CH2: 0~30V/0~5A, CH3: 0~6V/0~3A, CH4: 5V/2A, Resolution: 10mV/1mA, Watts: 328W, Accuracy: <0.3%+20mV/<0.2%+5mA, USB/RS232/LAN, Digital I/O

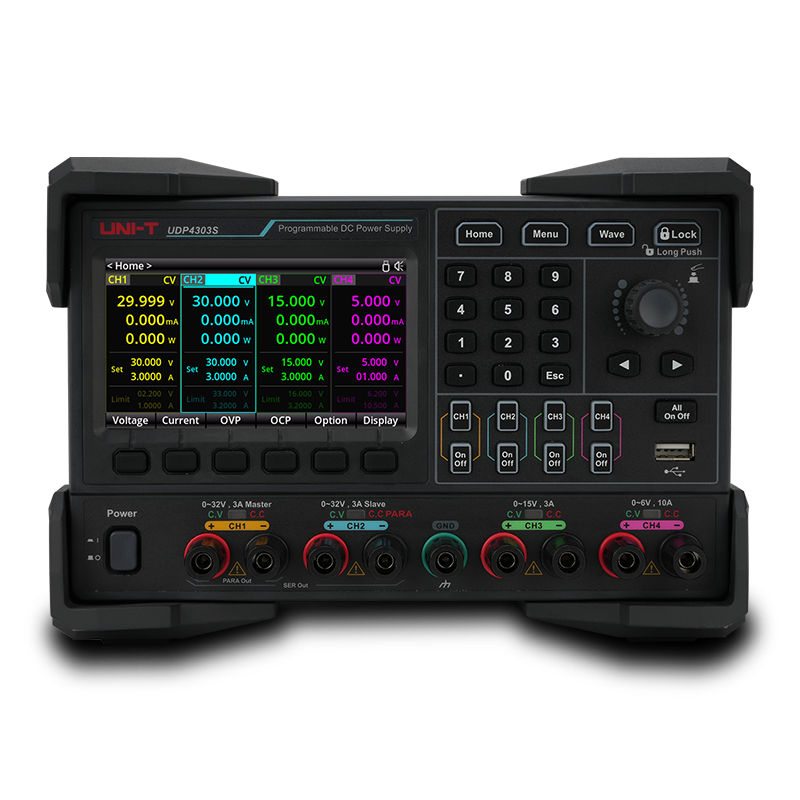

• Type: Linear
• Channels: 4
• Power: 297W
• Voltage Range: CH1/CH2: 0–32V, CH3: 0–15V, CH4: 0–6V
• Current Range: CH1/CH2: 0–3A, CH3: 0–3A, CH4: 0–10A
• Resolution: 1mV, 1μA
• Accuracy: <0.03%+8mV, <0.15%+5mA
• Interfaces: RS-232, USB Host, USB Device, LAN, Digital IO, Sense

• Type: Switching
• Channels: 1
• Power: 100W
• Voltage Range: 0~60V
• Current Range: 0~5A
• Resolution: 10mV, 1mA
• Accuracy: ≤0.05%+10mV, ≤0.2%+2mA
• Interfaces: RS232

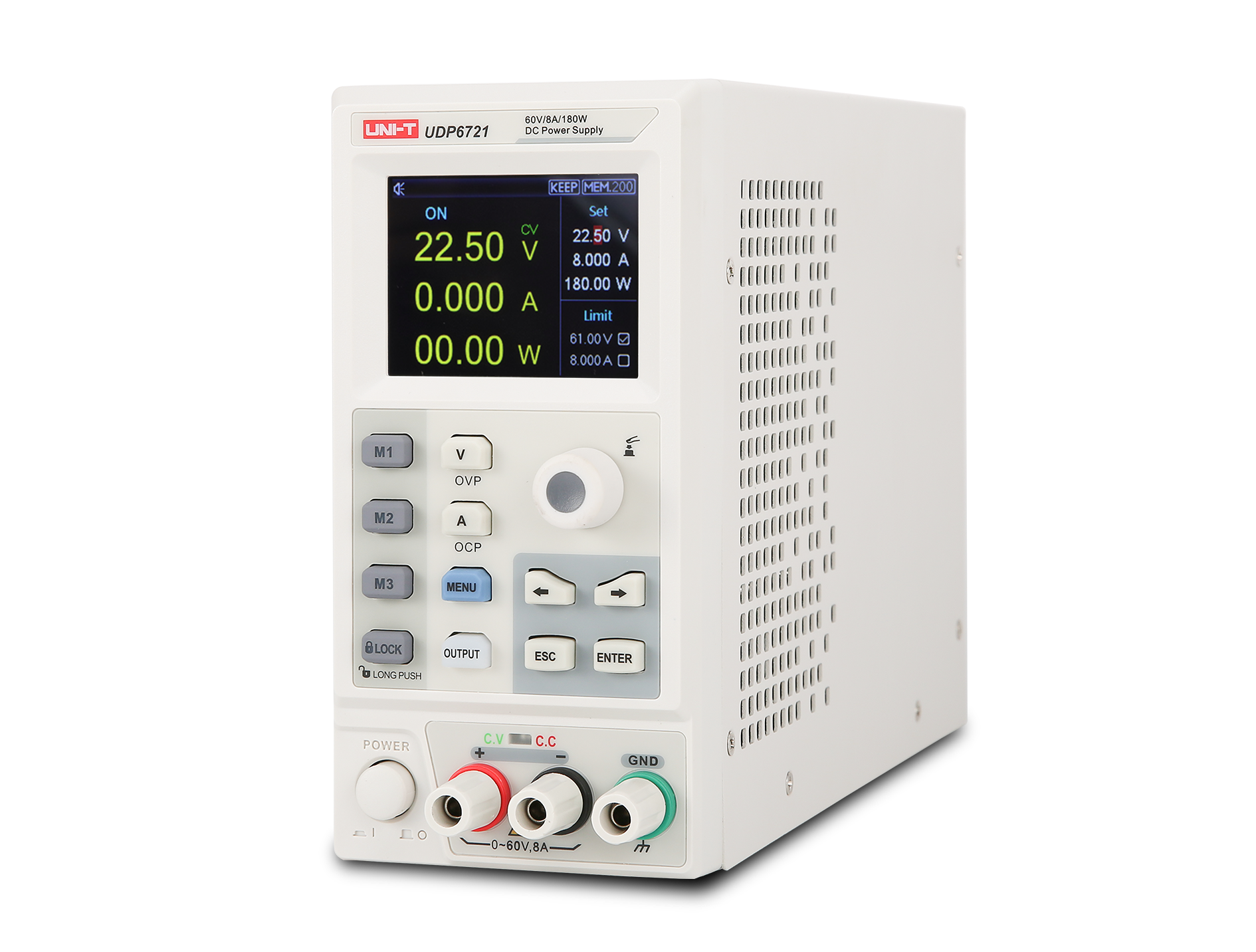

• Type: Switching
• Channels: 1
• Power: 180W
• Voltage Range: 0~60V
• Current Range: 0~8A
• Resolution: 10mV, 1mA
• Accuracy: ≤0.05%+10mV, ≤0.3%+5mA
• Interfaces: RS-232

• Type: Switching
• Channels: 1
• Power: 360W
• Voltage Range: 0~40V
• Current Range: 0~30A
• Resolution: 10mV, 1mA
• Accuracy: <0.1%+10mV, <0.3%+30mA
• Interfaces: RS-232

• Type: Switching
• Channels: 1
• Power: 360W
• Voltage Range: 0~80V
• Current Range: 0~15A
• Resolution: 10mV, 1mA
• Accuracy: <0.1%+10mV, <0.3%+10mA
• Interfaces: RS-232
